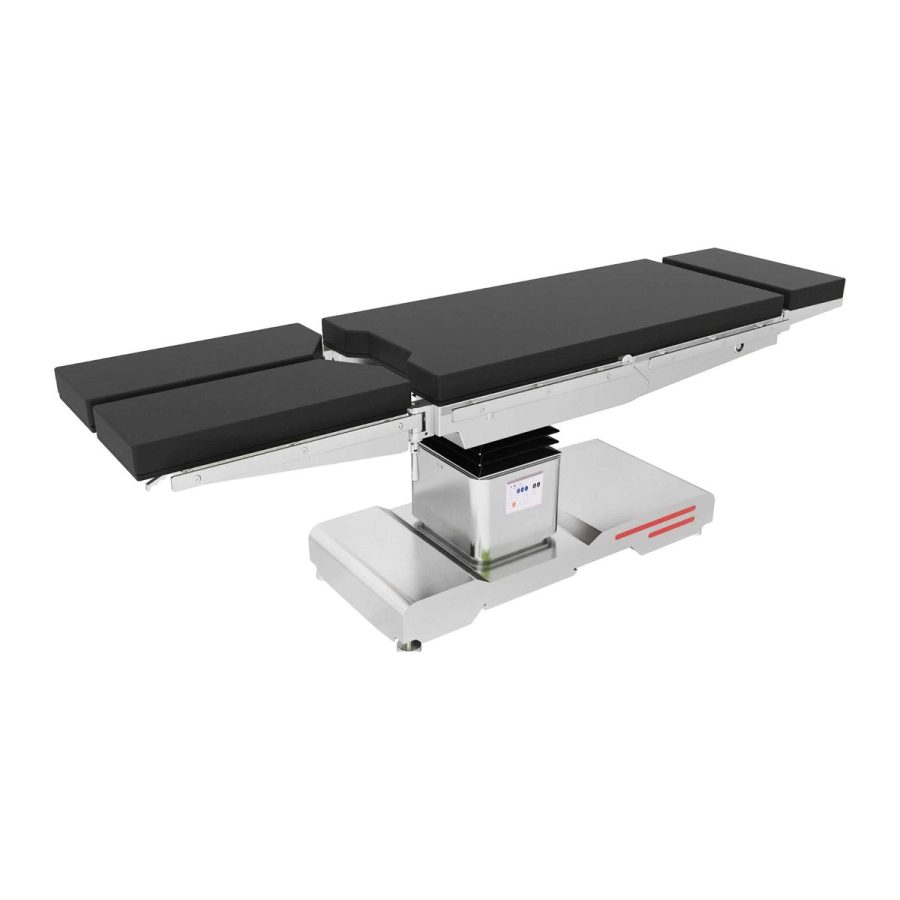

Electro-Hydraulic Operating Table, 590 mm Wide

Part no.DST-800A TypeEquipment

Price on requestWe will send a personal quote

Order now

058-666-6661 WhatsApp

Delivery to your clinic Manufacturer warranty, 12 months Installation and training Technician service

Multi-purpose electro-hydraulic operating table for general, cardiac, renal, cardiopulmonary bypass, thyroid, head and neck, gallbladder and chest, urological, rectal, gynecological, orthopedic and spinal surgery. Suitable for intraoperative imaging.

Key Features

Electro-hydraulic transmission, simple operation
Lifting, longitudinal shift and tilts by electro-hydraulic drive
Versatile for a range of surgical fields
Folding head section and folding, spreading legs

Technical Specifications

Tabletop length	2120 mm (including head board)
Tabletop width	590 mm
Back section	570 mm × width 530 mm (without side rails), 590 mm (with side rails)
Seat section	575 mm × width 530 mm (without side rails), 590 mm (with side rails)
Leg section	600 mm × width 250 mm (without side rails), 280 mm (with side rails)
Head board	300 mm × width 500 mm
Height from floor	660-1000 mm ±20 mm
Lift stroke	340±20 mm
Longitudinal shift	300±20 mm
Head / leg tilt	25°±2° / 25°±2°
Lateral tilt	left 22°±2°, right 22°±2°
Back section	up 65°±2°, down 20°±2°
Leg section	up 28°±2°, down 90°±2°
Outward leg spreading	90°±2°
Head board	up 30°±2°, down 90°±2°
Kidney bridge	elevation 110±5 mm
