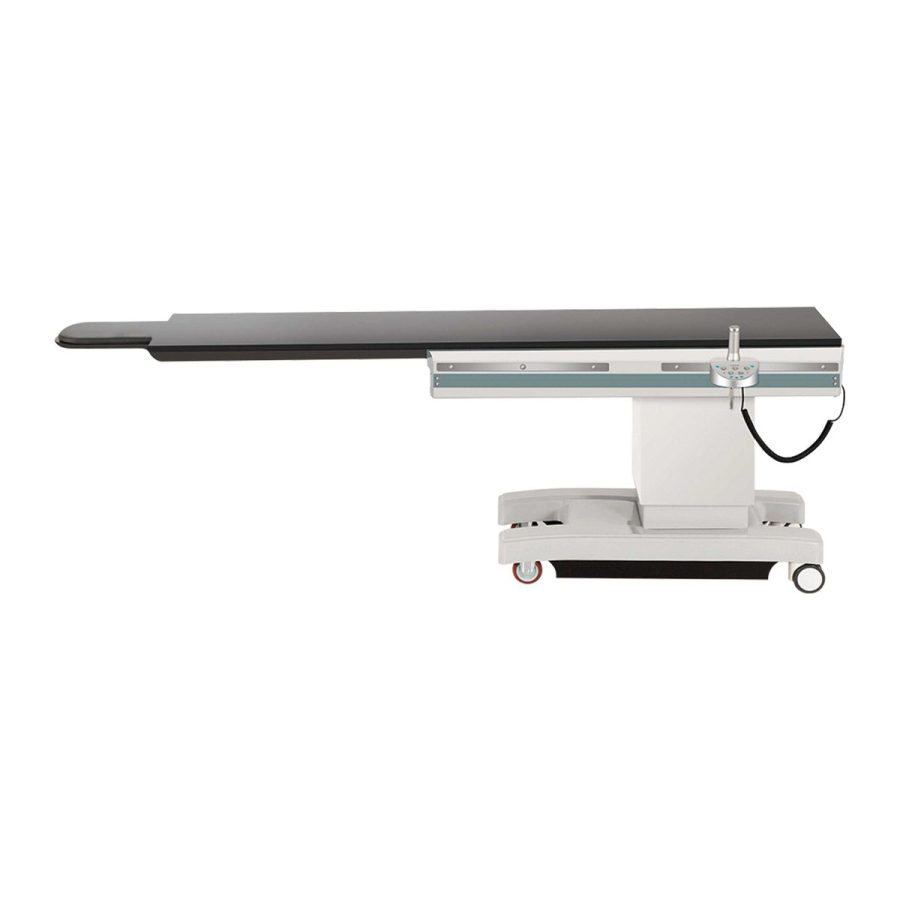

Electric Catheterization Table with Carbon Fiber Tabletop

Part no.JR-9000 TypeEquipment

Price on requestWe will send a personal quote

Order now

058-666-6661 WhatsApp

Delivery to your clinic Manufacturer warranty, 12 months Installation and training Technician service

Catheterization and interventional imaging table with a full carbon fiber tabletop, for cardiovascular and peripheral vascular imaging, catheterization and angiography (DSA) with a mobile C-arm.

Key Features

Radiolucent carbon fiber tabletop: 1750 mm radiolucent, 1200 mm metal-free
Electromechanical drive, simple operation
Electric lifting and electric table body locking
Electromagnetic locking of tabletop movements
Four large casters for free movement
Built-in 24V DC backup battery

Technical Specifications

Tabletop material	carbon fiber
Overall length	2500±10 mm
Radiolucent section length	1750±10 mm
Metal-free length	1200±5 mm
Overall width	685±5 mm
Radiolucent section width	465 mm
Thickness	40 mm
X-ray absorption coefficient (aluminum equivalent)	≤0.44 mm
Maximum load	240 kg
Lateral movement	manual, electromagnetic locking
Longitudinal movement	manual, electromagnetic locking
Tabletop travel	250±20 mm
Maximum overhang toward the head	1880±20 mm
Maximum overhang toward the feet	1050±20 mm
Vertical movement	electric
Minimum height from floor	750±20 mm
Maximum height from floor	1100±20 mm
Lift stroke	350±20 mm
Average speed	8 mm/s
Table body locking	electric
Voltage	220VAC, 50/60Hz
Maximum input power	300VA
Fuse	F5AL250V (5×20 mm)
