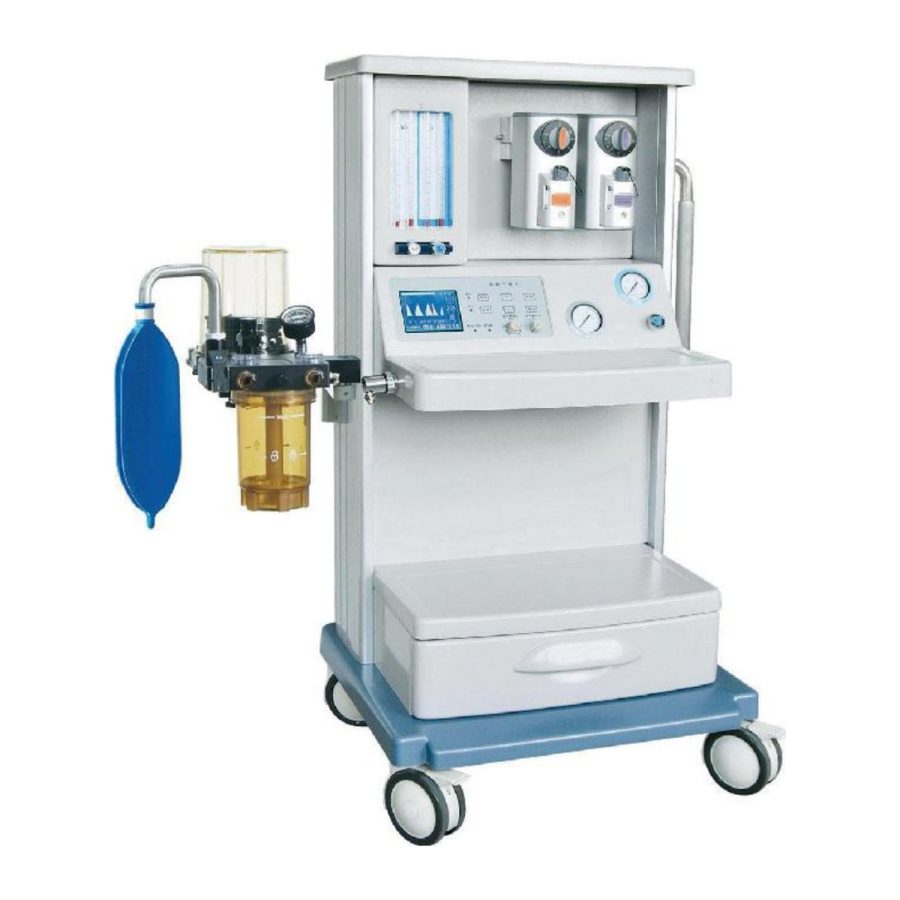

Anesthesia Machine with Ventilator and Two Vaporizers
Delivery to your clinic
Manufacturer warranty, 12 months
Installation and training
Technician service
Anesthesia machine with built-in ventilator, two vaporizers and 4-tube flowmeter, for stable and safe anesthesia in the operating room.
Key Features
- Built-in ventilator with a range of ventilation modes
- Mount for two vaporizers with Selectatec connections
- Vaporizers with self-compensating mechanism for accuracy and stability
- Precise flowmeter with 4 flow tubes
- Safety interlock between O₂ and N₂O, preventing the oxygen concentration from dropping below 21%
- Built-in backup battery
- One drawer
- Compact design and lightweight ergonomic frame
Technical Specifications
| Screen | 5.4 inch LCD |
|---|---|
| Ventilation modes | A/C, IPPV, SIPPV, IMV, SIMV, manual |
| Tidal volume | adjustment 50-1500 mL, display 0-2000 mL |
| Flowmeters | 4 tubes, O₂ and N₂O 0.1-10 L/min |
| Vaporizers | 2 (Isoflurane, Halothane, Sevoflurane) |
| Vaporizer connections | 2 × Selectatec |
| Dimensions (H×W×D) | 132×100×65 cm |
| Weight | 96 kg (including 2 vaporizers) |
| Operating voltage | 220-240V |
| Operating frequency | 50-60Hz |
| Grounding | proper grounding connection required |
| Backup battery | at least 30 minutes, typically 2-4 hours |
Options
- Patient monitor
Manufacturer warranty, 12 months · Installation and training included · technician service at your clinic · For urgent requests and technician service at your door
