Ceiling Pendants and Medical Panels
Home / Catalog / Ceiling Pendants and Medical Panels / Electric Medical Ceiling Pendant with Pneumatic Brake

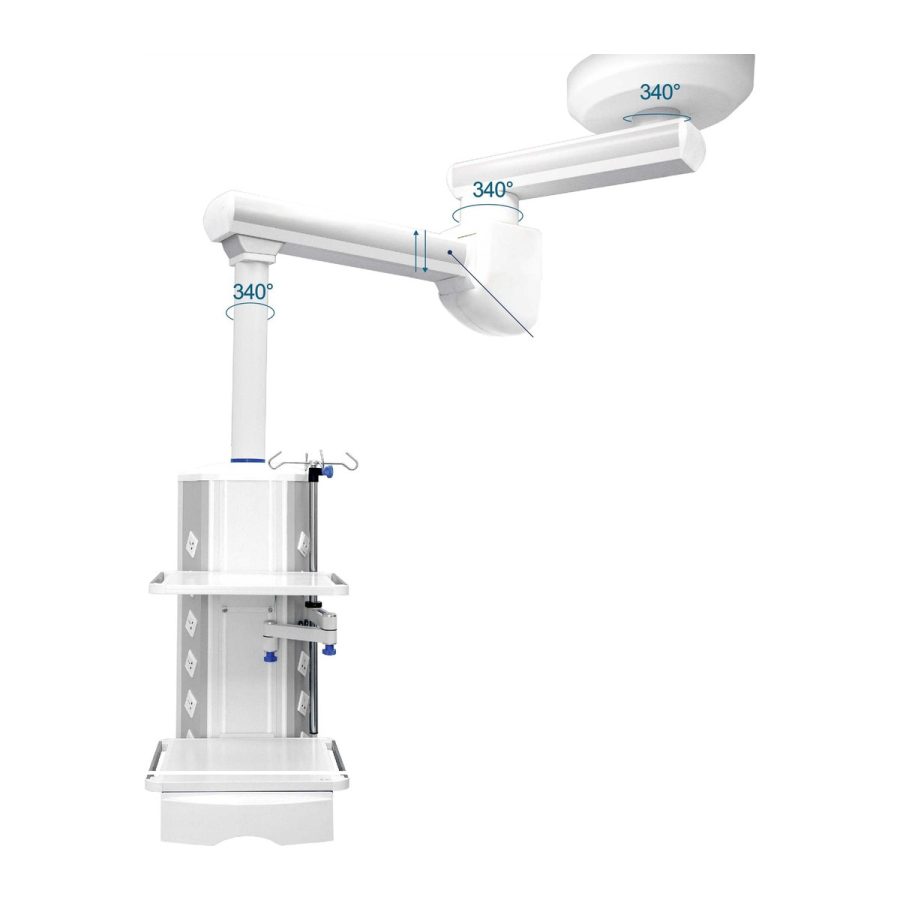

Electric Medical Ceiling Pendant with Pneumatic Brake
Delivery to your clinic
Manufacturer warranty, 12 months
Installation and training
Technician service
Double medical ceiling pendant with electric lift and pneumatic brakes for operating rooms and intensive care. Suitable for surgery, anesthesia and endoscopy.
Key Features
- Electric lift of the pendant
- Pneumatic brakes
- 340° rotation
- Adjustable shelf height
- Gas outlets selectable in GB, DIN, US, BS standards
Technical Specifications
| Maximum load | 270 kg |
|---|---|
| Arms | 800+1066 mm (customized to order) |
| Electric lift range | 400-600 mm |
| Functional column height | 600-1000 mm |
| Rotation angle | 340° |
| Gas outlets (selectable) | O2, vacuum, air, N2O, CO2, N2, anesthetic gas scavenging (AGSS) |
| Power socket | 220V 50Hz 10A |
| Equipotential grounding | 2 points |
| Intercom | RJ45 category 6 |
| Equipment shelves | 2 tiers |
Options
- Equipment rack
- Gas outlets
- Basket
- Network points
- Intercom
- Power sockets
- Anesthesia machine mount
- Monitor arm
- Display arm
- LED surgical examination lamp
- IV poles
- Direct or hanging flowmeter
Manufacturer warranty, 12 months · Installation and training included · technician service at your clinic · For urgent requests and technician service at your door
